Home > D400 - 40 Tonne Drainage Channel
Model: CD-D10-L00G-27
Temporarily Unavailable

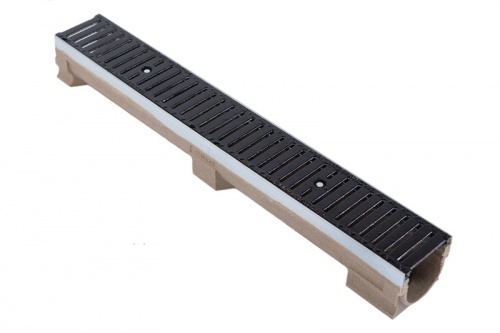

Class D400 (40Tonne)Galvanised Steel Edged Channel 100Ductile Iron Narrow Slotted Grating1m LongEN1433:2002 Type M. CE marked.
FEATURES INCLUDE:Channel manufactured from hard-wearing polymer concreteGalvanised steel edge rail6mm slot gratingGrating Waterway Area = 180cm2 (per metre)
DIMENSIONS:External:Width 131mmHeight 127mmInternal:Width 100mmHeight 112mm
Maximum through flow 5.0 l/s
APPLICATIONS:Building entrancesService stationsCar parksPedestrian precinctsKerbside drainageSlow moving light commercial vehicles
CHANNEL MATERIAL SPECIFICATION:Resistance to bending: 22 MPaResistance to compression: 90 MPaResistance to heat: 70°c (resin HDT)
D400 Channel Silt Box c/w Ductile Iron Heelguard Grate£117.20 ex. VAT£140.64 inc. VAT
Outlet End Cap£8.73 ex. VAT£10.48 inc. VAT
Plain End Cap£8.73 ex. VAT£10.48 inc. VAT
