25 Tonne Ductile Iron Grate Channel Drain x 1m CD 437 | Clark Drain

Zoom

Our Price: £47.66(Exc. 20% VAT)(£57.19 Inc. VAT)

–+

Model: DSDC250

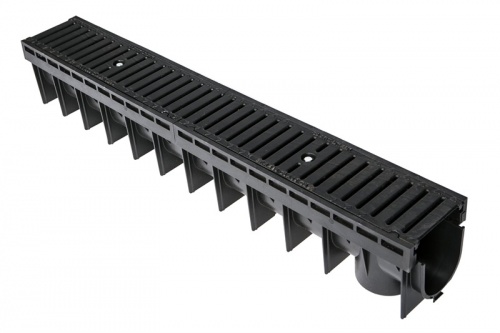

25 Tonne Ductile Iron Grate Channel Drain x 1m CD 437

CD 437 PLASTIC CHANNEL & DUCTILE IRON GRATING

Application: Commercial Linear Drainage
Loading:C250
Lifting Key: N/A
Accreditations: EN1433:2002 Type M. CE marked
Product Features: Channel & Grate Knockout section in channel for vertical outlet (optional). 2x 500mm narrow slot grates.
Material:Polypropylene Channel with G/R Nylon edging & Ductile Iron Grate.
Locking:Locking bars & bolts fitted
External Dimensions: 1000 (L) x 147 (W) x 158 (H)
Clear Opening: 1000 (L) x 100 (W) x 128 (H)
Water Way Area: 180cm2

Compatible products include:

-DC206 Outlet Cap/End Cap (pair)

-DC210 Debris/ Leaf Trap

C250 refers to the maximum weight load that the channel can withstand. This channel is suitable for use in light traffic areas, as well as driveways where there may be the possibility of small delivery vehicles, removals vans.
