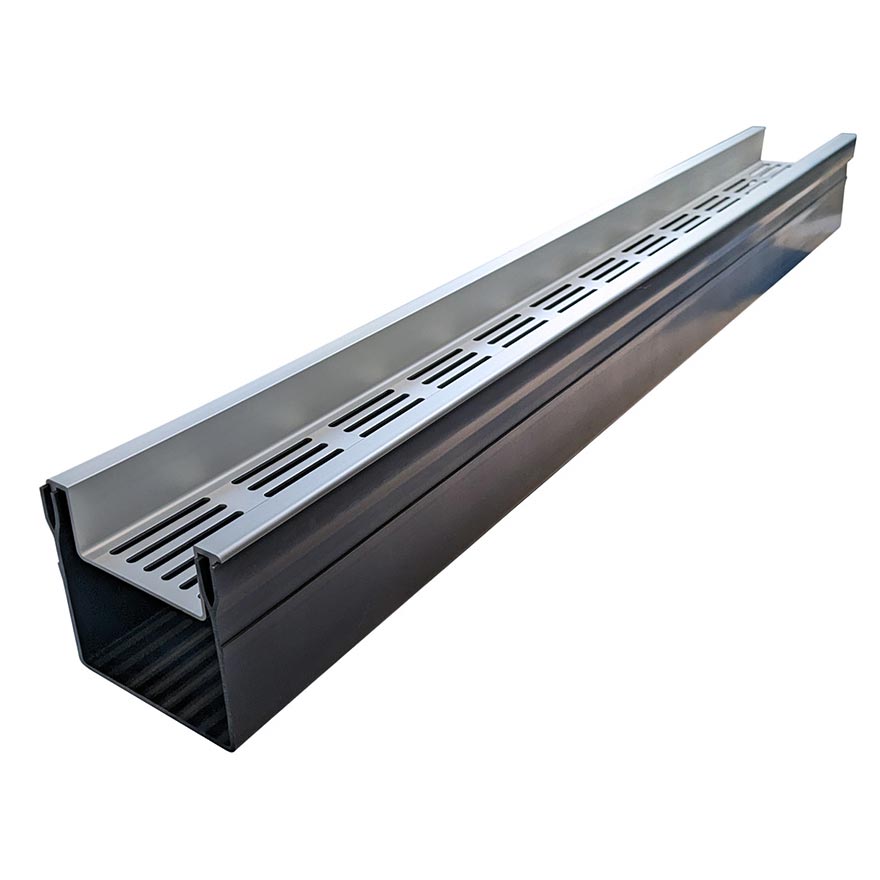

Threshold 100 Recessed Channel x 1m Aluminium Grate

Model:  TD700

Threshold 100 Channel Drainage x 1m Aluminium Grate

Dimensions:

• External Width (Top)- 100mm
• Internal Width (Top)- 85mm
• External Width (Bottom)- 100mm
• Internal Width (Bottom)- 95mm
• Internal Depth- 95mm
• External Depth- 100mm
• Length-1000mm
• Width of Recess for the stone-78mm
• Depth of Recess for the stone- 38mm

Advantages and Features:

• Grate is removable for cleaning
• Aluminium grates should not show signs of rusting (THIS EXCLUDES OUR CORTEN STEEL RANGE)
• A15 rated- Popular for use on a patio or top end of driveway (providing a car will not drive over it).
• This channel is easy to put together with the use of connectors to help keep the unit stable during installation. We recommend you purchase 1 connector per length of channel and use a connector on each of the three ends of a tee and both ends of the 90deg corner unit.

Compatible products:

• TD602- Channel Coupling
• TD603-Bottom outlet to 110mm
• TD604- Channel End Cap
• TD605- Inline Outlet to 80mm
• TD701- Threshold Recessed Corner Unit Aluminium Grate

For use with decorative stone (not supplied)

A15 Refers to the maximum weight load that the channel can withstand. This channel is commonly used in pedestrian areas. For example in gardens or pedestrian footfall areas.

*Please note: These are not ACO and are not compatible with ACO products*
